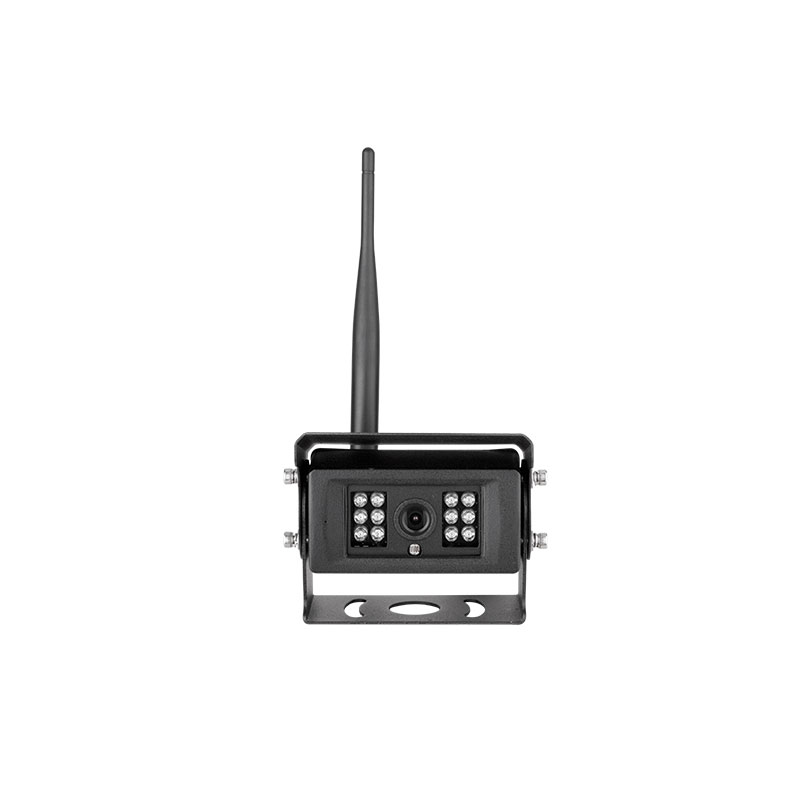

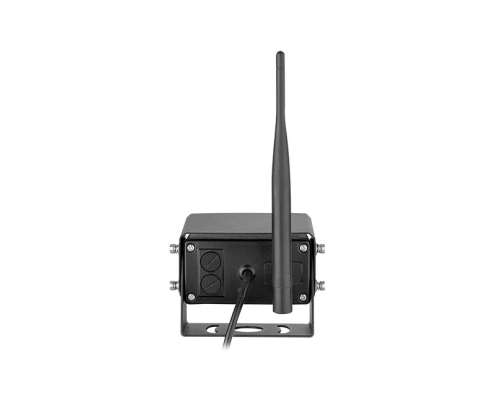

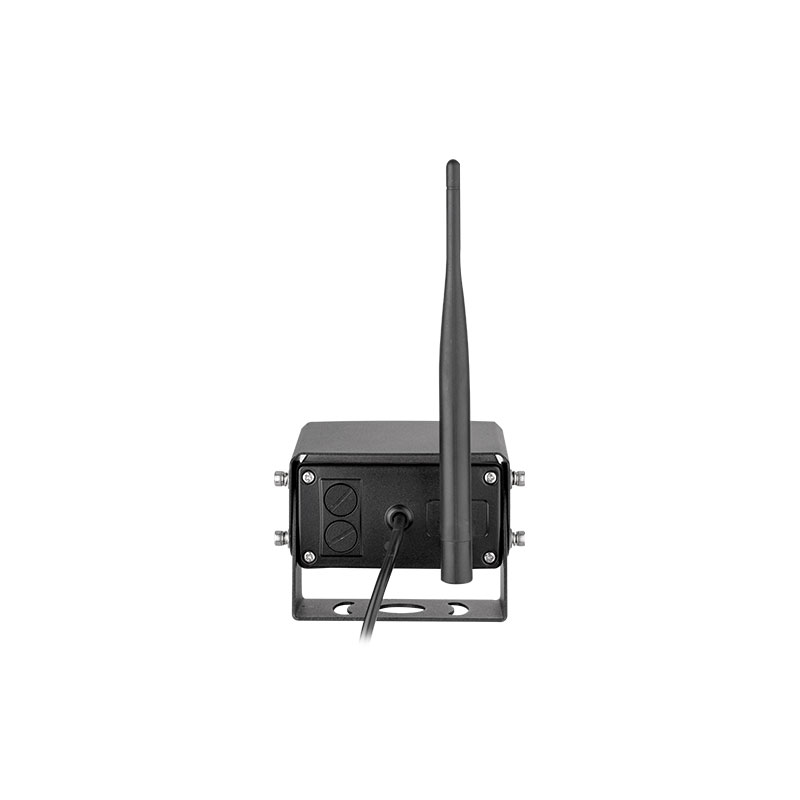

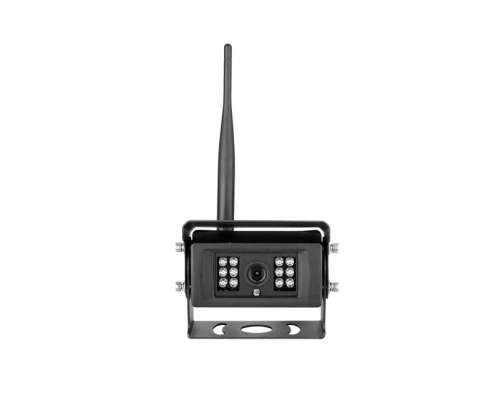

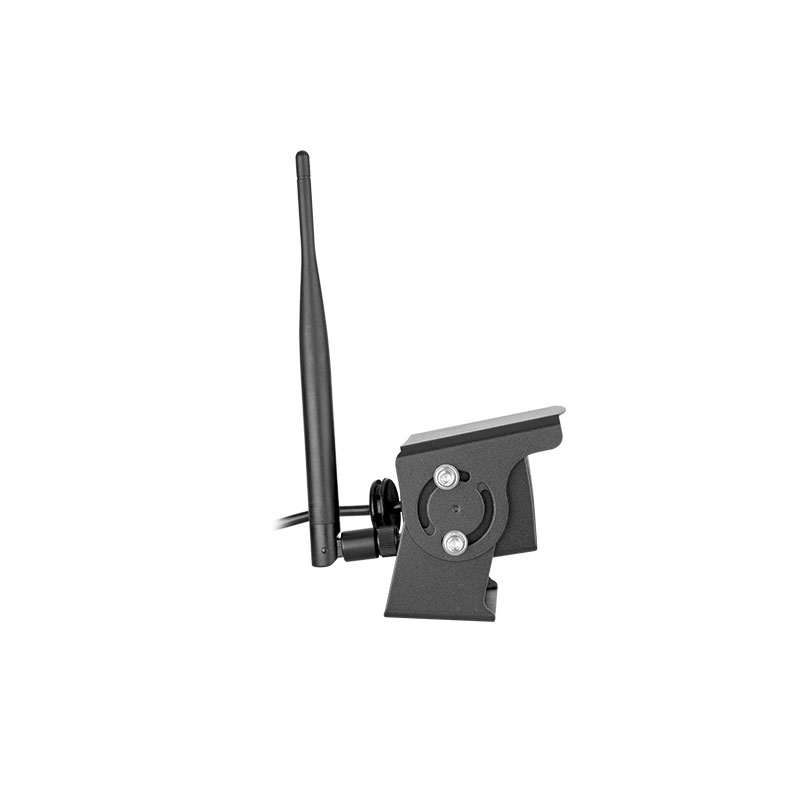

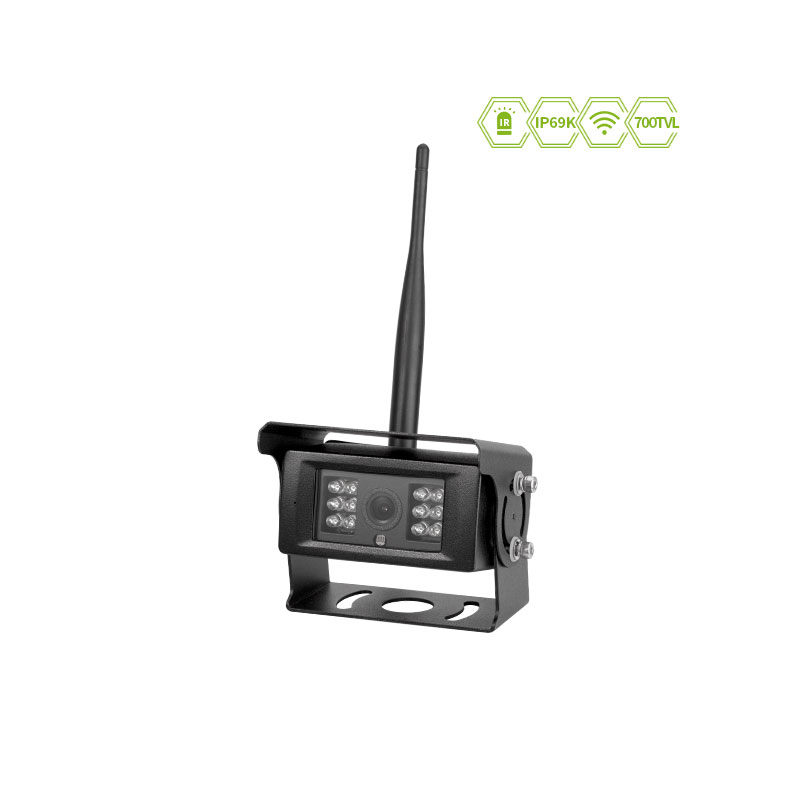

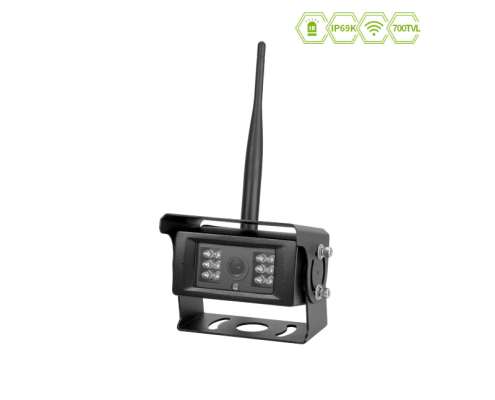

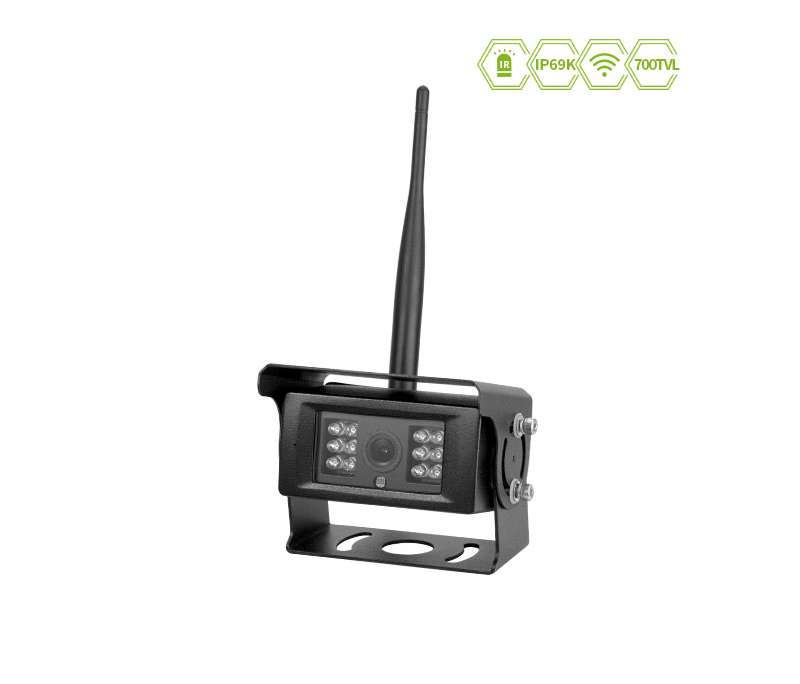

JY-6731W wireless IP69K waterproof rear view camera with 10m night vision
Product Features
The Luview JY-6731W high definition night vision wireless backup camera, with an IP69K waterproof rating, is designed specifically for truck drivers, engineering vehicle operators, and agricultural machinery operators. Equipped with a 1/2.9 CMOS sensor, it delivers clear and detailed image quality. Combined with a 10-meter infrared night vision function, it ensures clear visibility even in dark environments, making nighttime reversing safer.
-
Equipped with a 1/2.9 CMOS sensor
-
Waterproof rating: IP69K
-
With night vision capability and an infrared range of 10 meters
Technical Specifications
| Image Sensor | 1/2.9 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 1280 X 960/720P |
| Sensing Area | 2.8μm（H）ⅹ 2.8μm（V） |
| Minimum illumination | 0.01 Lux |
| SNR | ≥38dB |
| Dynamic range | 81dB |
| Microphone | yes |
| IR LED Qty | 12PCS |
| Night Visual | 5-10M |
| Effective Launch Distance (empty) | 200M |
| Video Format | MP4 |
| Operating Frequency Range | 2410MHz～2478MHz |
| Transmit Power | 17.5dB |
| Antenna Power | 5dB |
| Modulation System | QPSK |
| Frequency Space | 2MHz |
| White Balance | AUTO |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Gamma Coefficient | 0.45 |
| Power Supply | DC:12V~24V |
| Lens | 2.8mm |
| Lens Angle | H：105° V：54° D：111° |
| Consumption Current | DAY：145±5mA；Night：230±5mA |
| Waterproof | IP69K |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
