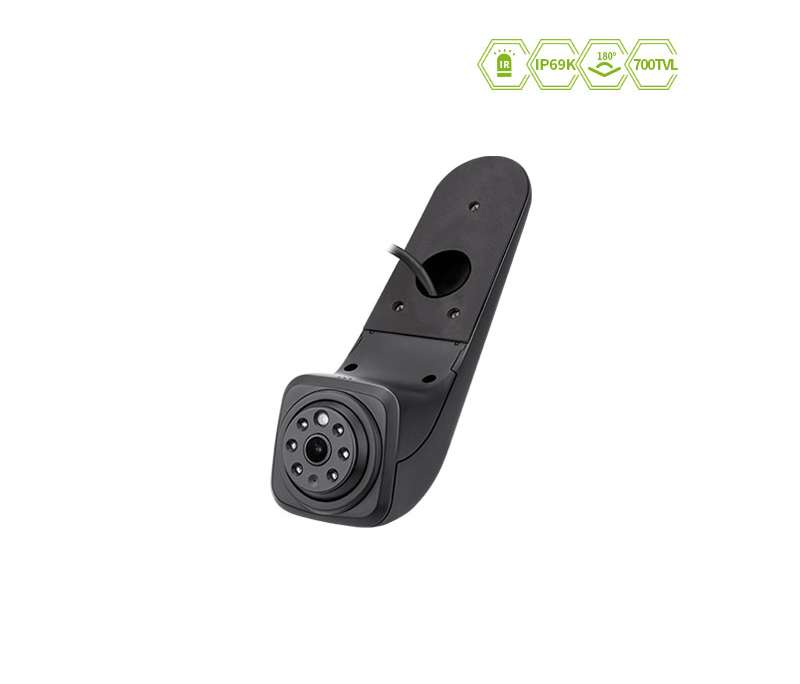

JY-694 third brake light camera for 2017-2022 Volkswagen VW Crafter
Product Features
Have you been looking for a reliable brake light camera to upgrade your 2017-2022 Volkswagen VW Crafter? Look no further! Luview offers the JY-694 AHD Camera with 6 switching modes, up to 180° viewing angle, which can be perfectly installed by replacing the original brake lights. And we have more than 15 years of industry experience in automotive electronics OEM/ODM. We provide stable quality products at competitive prices – if you’re interested then drop us an email at [email protected] today!
- Use 1/3CMOS sensor
- Waterproof grade IP68
- With night vision function
- Support fisheye image correction function
- Support mirror switch
- Support for 6 modes switching
- The rear view angle is 180 degrees
Technical Specifications
| Image Device | 1/3 CMOS PC2099K |
| TV System | NTSC/PAL |
| Effective Pixels | 968(H)×488(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 6PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 2.6mm |
| Lens Angle | 130° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
