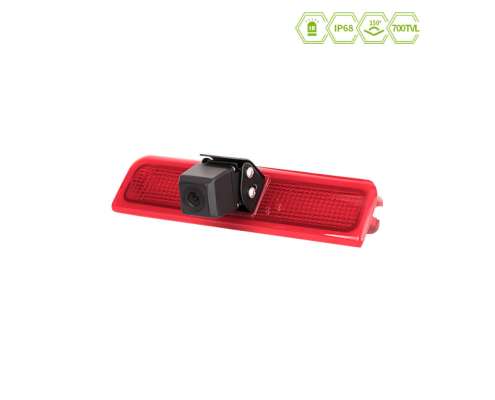

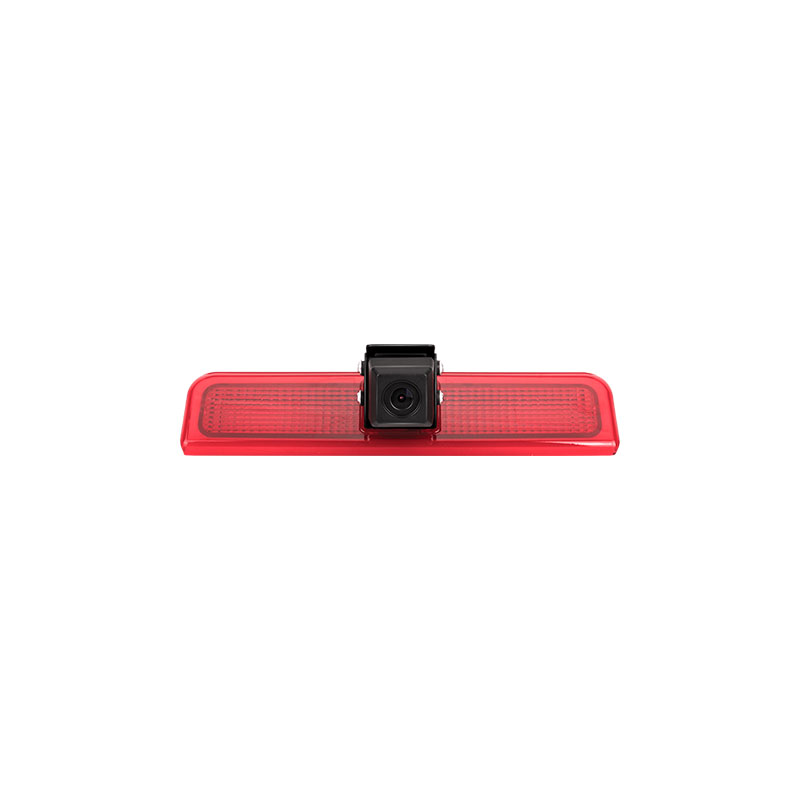

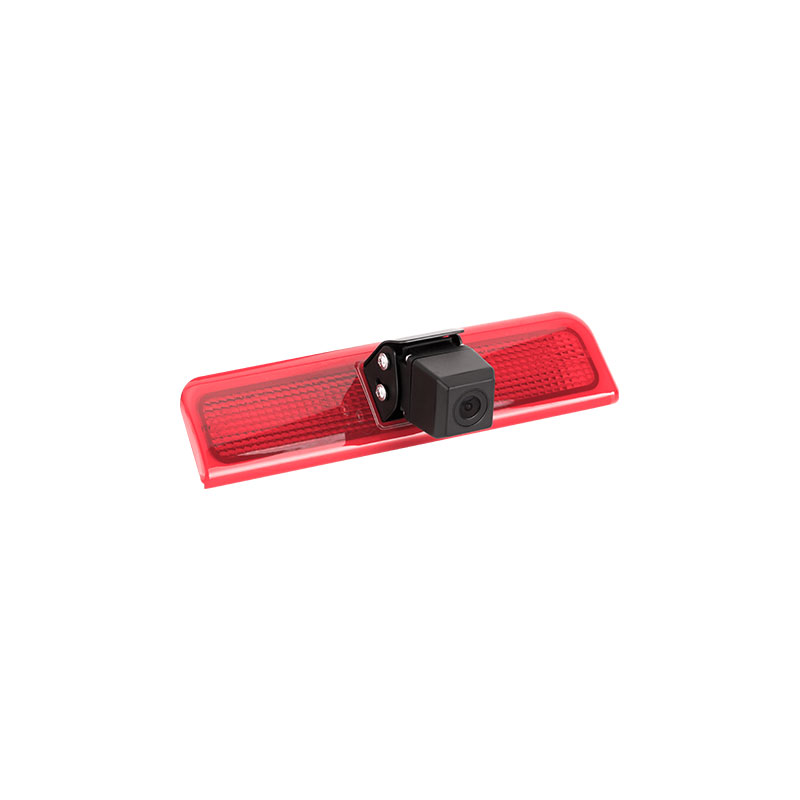

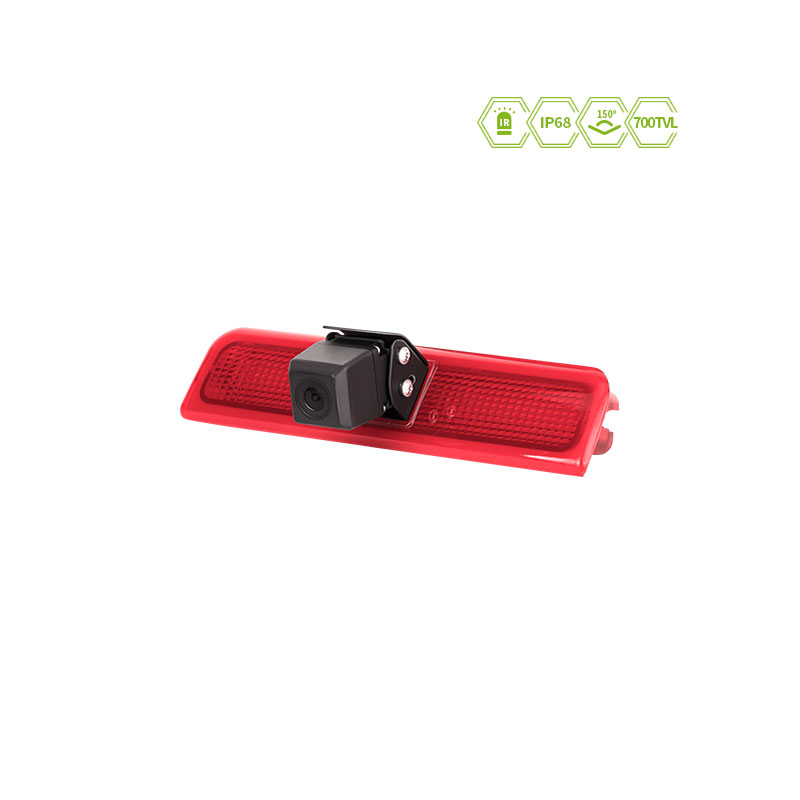

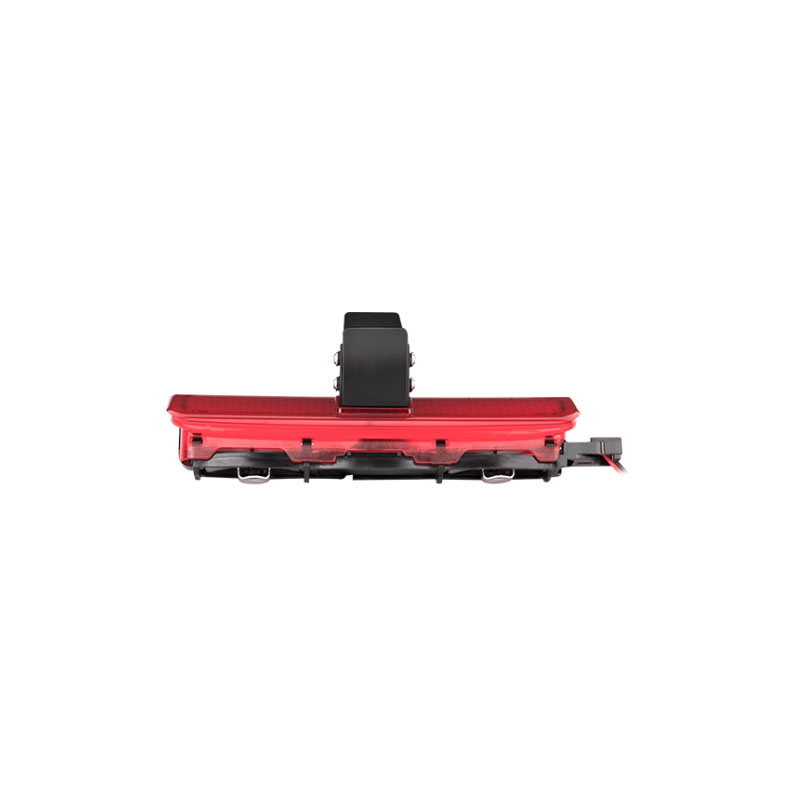

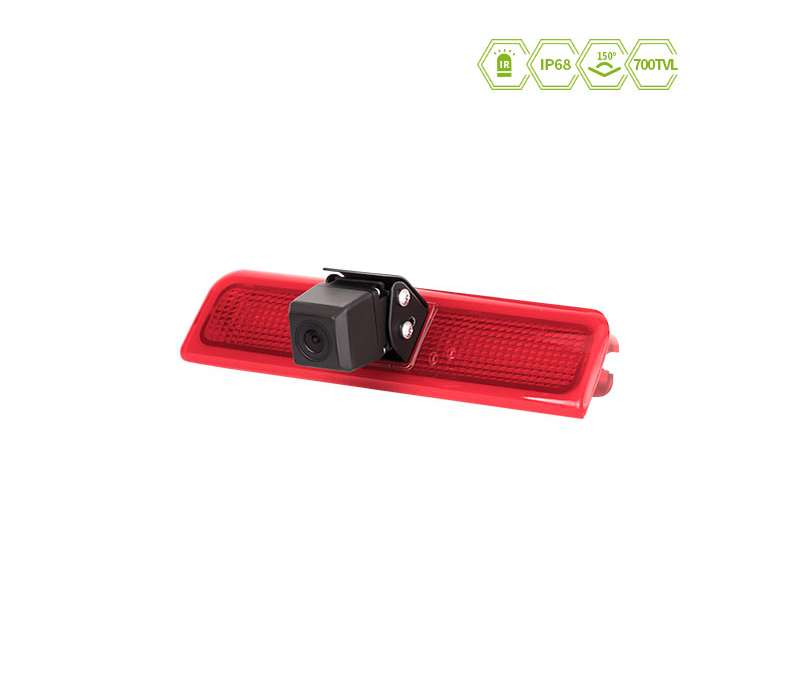

JY-695 brake light camera for 2003-2020 Volkswagen VW Caddy
Product Features
Make the driving safer with Luview’s JY-695 brake light camera! Perfect for 2003 – 2020 Volkswagen VW Caddy owners, it offers 150° of visibility and has an IP68 protection rating, meaning you don’t have to worry about wind or rain disrupting your driving. And with a one year warranty on all parts included in installation, this high quality blind spot detection system is sure to keep everyone safe out there.
- support analog hd video 700TVL
- Waterproof grade IP68
- Support mirror switching and ruler control functions
Technical Specifications
| Image Sensor | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 150° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
