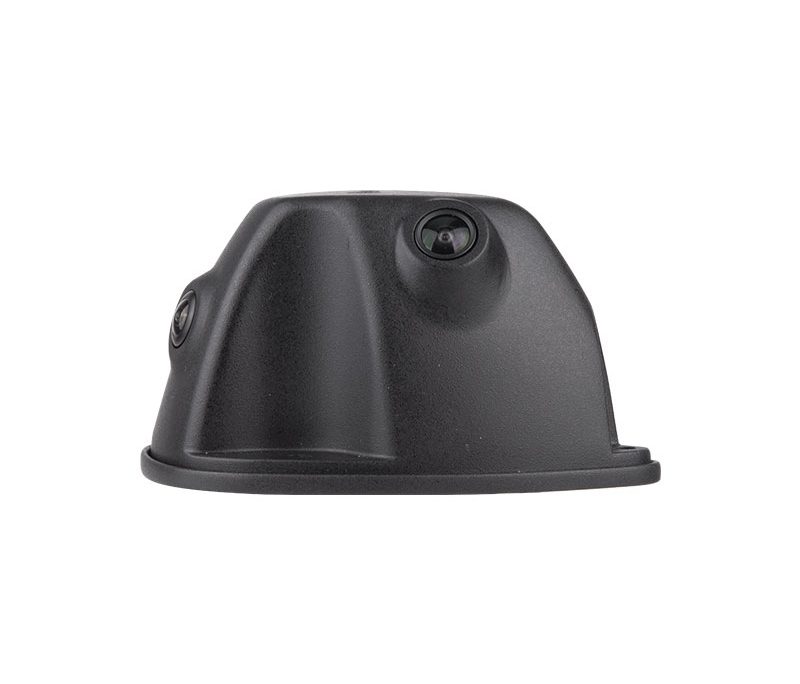

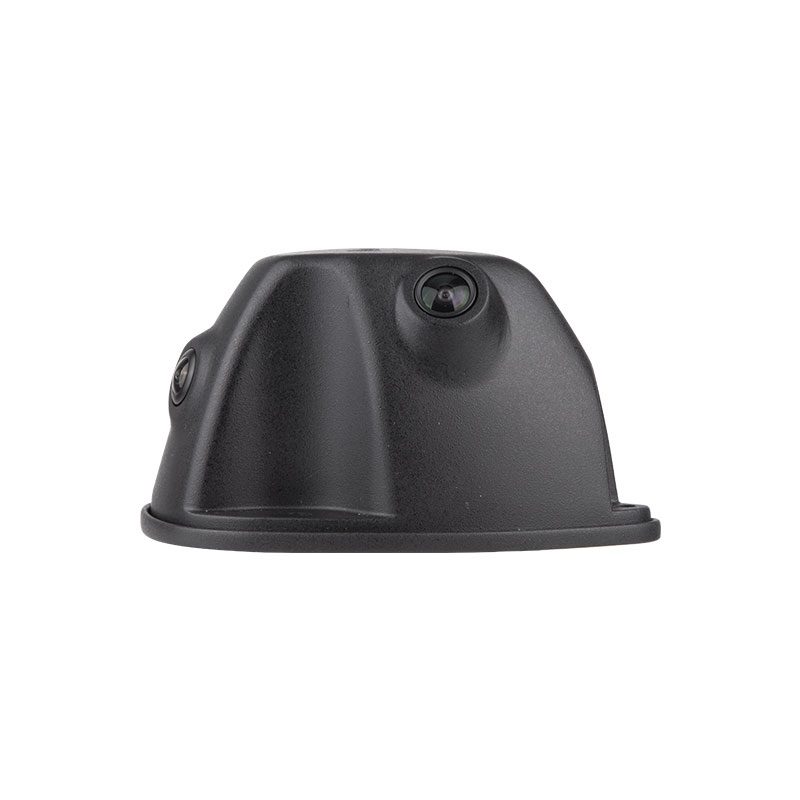

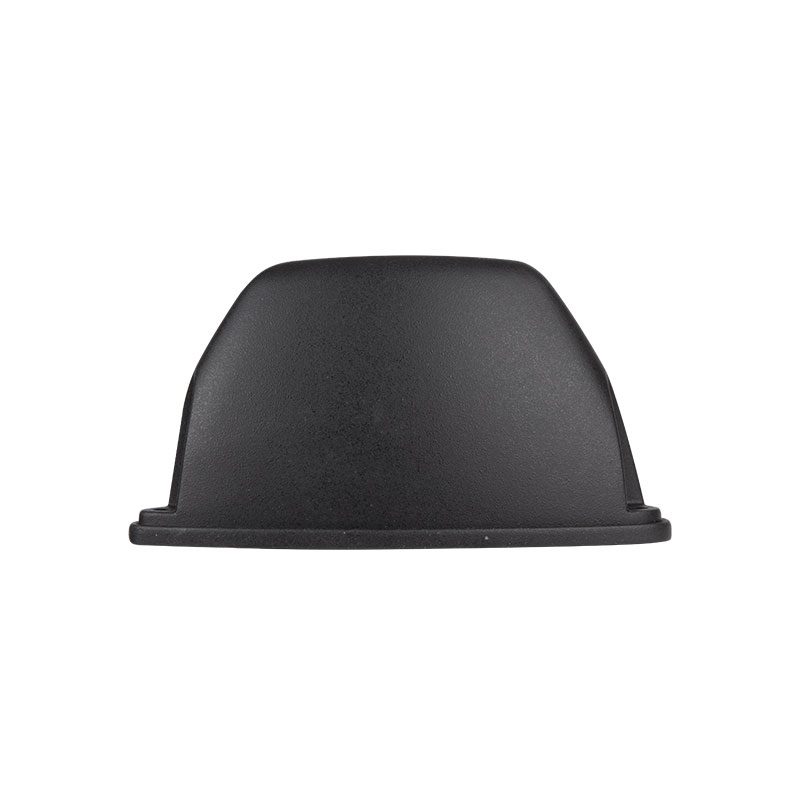

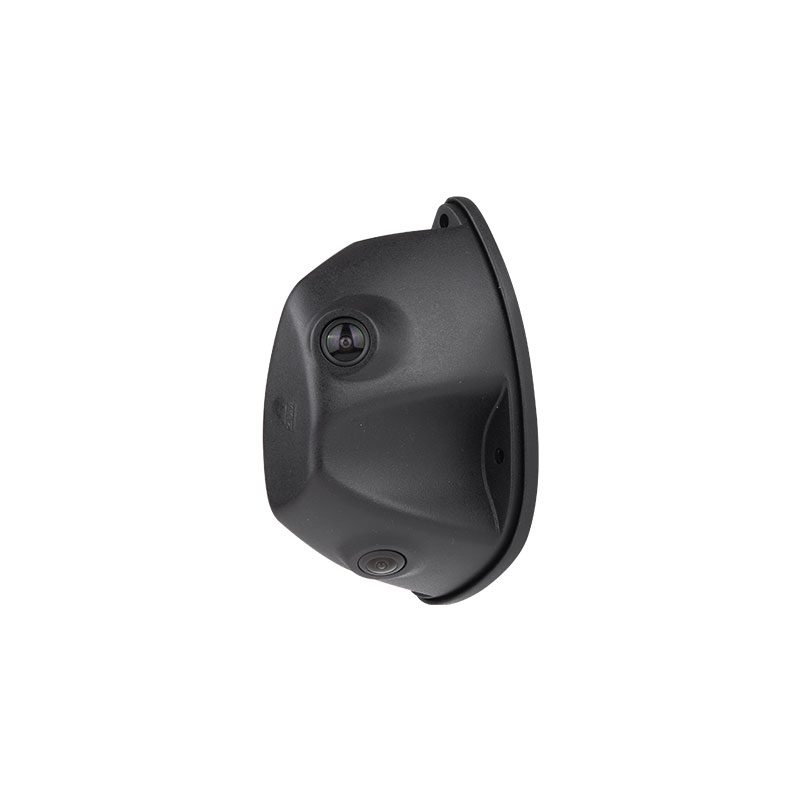

JY-815 UN ECE R151 compliant AI IP69K dual lens side view camera

Addressing the common risk of right-side blind spots in buses, trucks and other large vehicles, Luview JY-815 AI dual-lens side-view camera delivers a UN ECE R151-compliant BSIS blind-spot monitoring solution. It covers the critical 0–5 m right-side blind zone and extends the view 7 m forward and 30 m rearward. An AI algorithm accurately identifies pedestrians and vehicles, issuing real-time alerts to give drivers an intelligent safety shield that is both visible and comprehensible.

Inquiry Now

Product Features

Compliant with UN ECE R151, equipped with Blind Spot Information System (BSIS) on the right side
Cover 0–5 m on the right side, 7 m forward, 30 m rearward
Dual-lens camera
AI-based detection and warning for pedestrians and vehicles
Support parameter setting and calibration via mobile app
Compatible with Android and iOS
Audio alarm output with real-time alerts
Adjustable image format, mirroring, and flip settings
Configurable detection area, scale, and trigger zone
External Wi-Fi for communication and updates
IP69K waterproof rating
Mounting area: Height 2.5–3 m, front right side or below right mirror

Technical Specifications

Image Sensor	1/2.9 CMOS GC2053
TV System	NTSC / PAL (optional)
Effective Pixels	1920(H)×1080(V)
Sensing Area	2.8μm（H）ⅹ 2.8μm（V）
Sync. System	Internal
Resolution	19201080/1280720 (optional)
Video Output	1.0Vp-p/75 Ohm
Scanning System	Interlace
AGC	AUTO
Signal to noise ratio	Better than 38dB
White balance	AUTO
Gamma Consumption	0.45
Electronic Shutter	AUTO
Backlight Compensation	AUTO
Power Supply	DC 12V-24V
Lens	Front-side:1.78mm; Rear-side:2.5mm
Lens Angle	Front-side:H:142，V:90，D:171; Rear-side: H:100°, V:57°, D:120°
Current Drain	250±20mA
Operating Temperature	-20℃-70℃,RH 95% MAX
Storage Temperature	-30℃-80℃,RH 95% MAX
