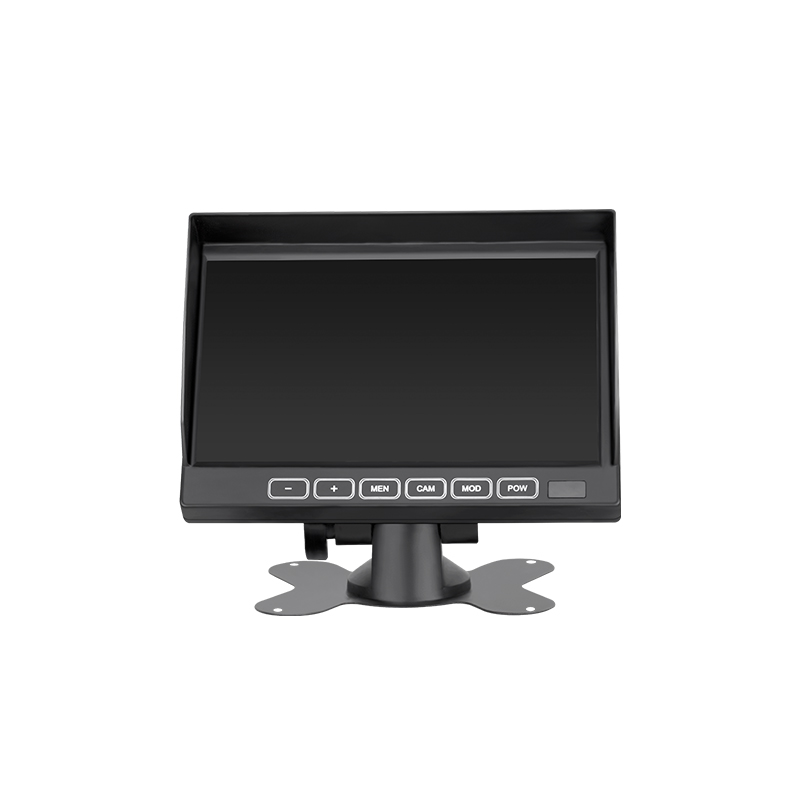

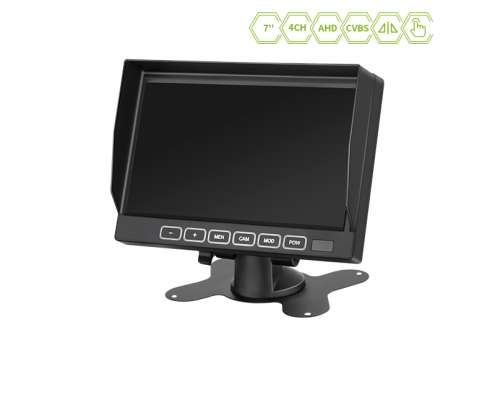

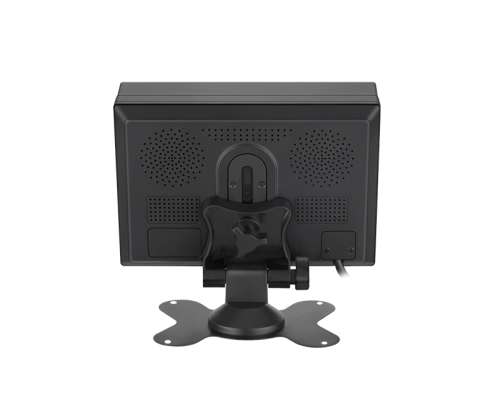

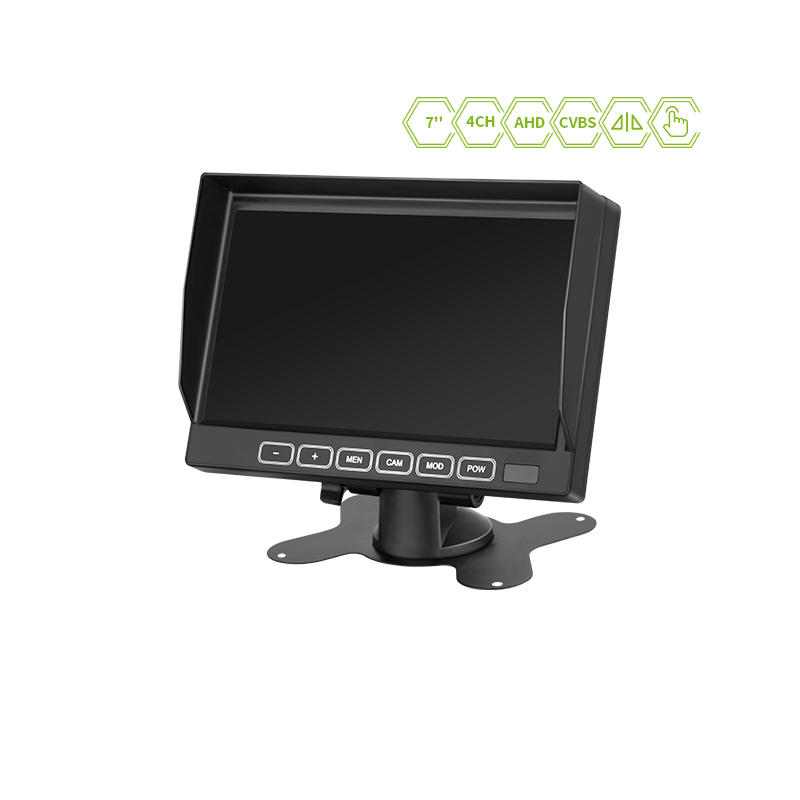

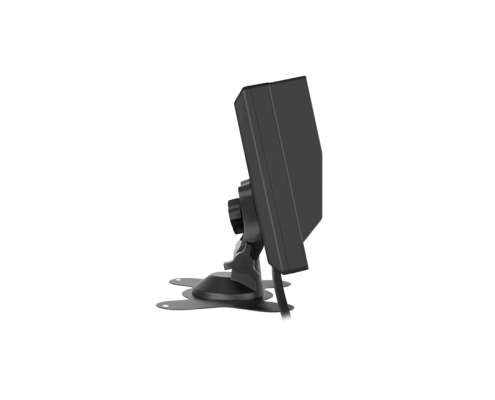

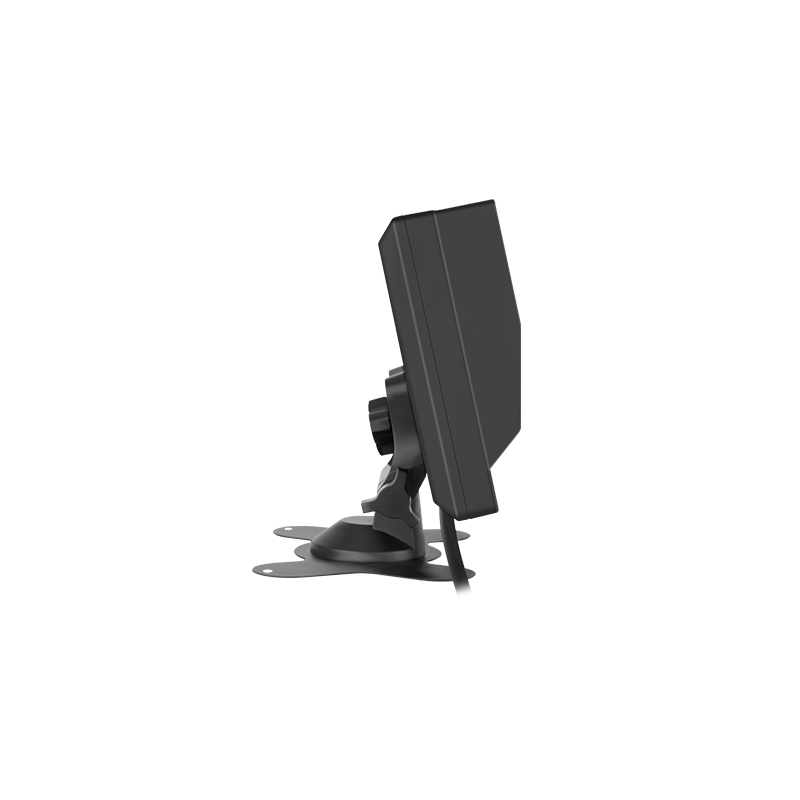

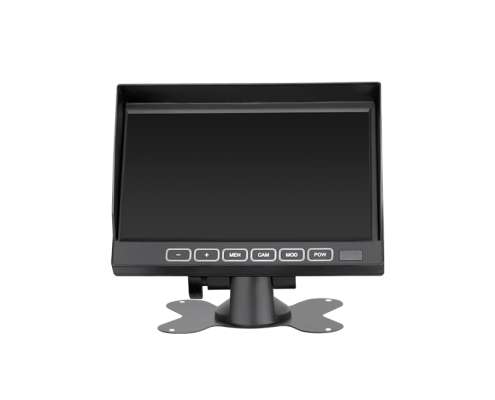

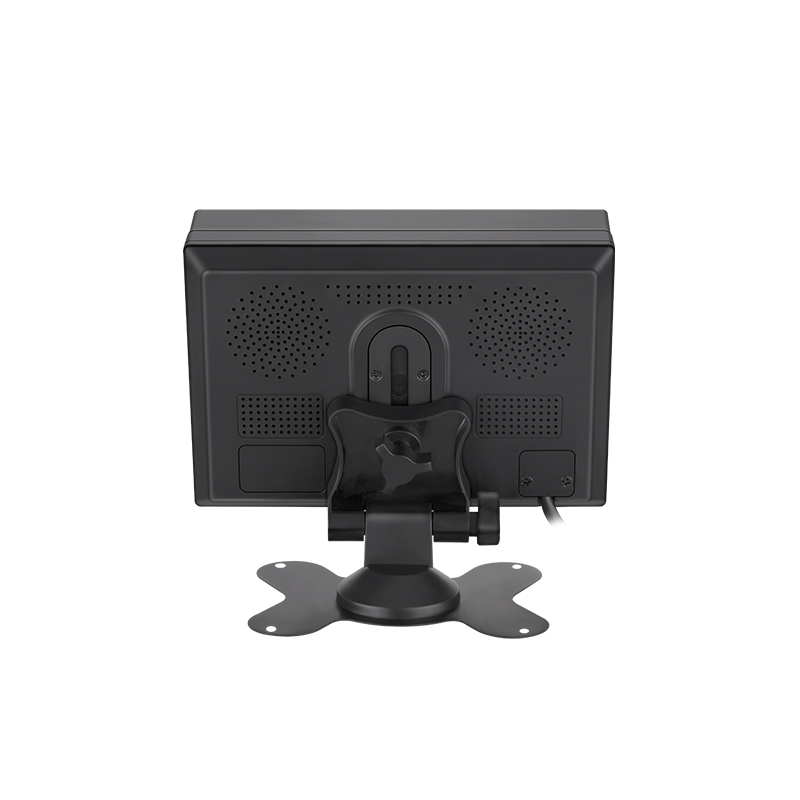

JY-M790T HD night vision 7 inch stand alone touch button LCD monitor
Product Features
Experience an unparalleled level of night vision clarity with the Luview JY-M790T, a flat-panel ultra-thin 7 inch stand alone touch button LCD monitor which brings revolutionary touch control, low power consumption and no heat operation to harvesters, trucks or buses. Its impressive high definition will amaze you – see vivid fine picture quality without any hint of flicker!
- With speakers
- With remote control function
- Multi-languages of display available
- Supports video input from 4 cameras at the same time
- Support audio input from 4 camera at a time (optional)
- Images can be flipped up and down from left to right
- 12/24V，DC/<6W
Technical Specifications
| Screen Size | 7"/16：9 |
| Resolution | 800（W）* R.G.B * 480(H) |
| TV System | PAL/NTSC |
| Brightness | 300cd/㎡ |
| Contrast | 500:1 |
| Active Area | 154.08(W) × 85.92(H) mm |
| Viewing Angle | U/D:50°/70°,R/L:70°/70° |
| Image Settings | Brightness、Color、Contrast |
| Video Format | CVBS |
| Mirror Flip | Non-mirror, mirror, flip, mirror flip |
| Video Channel | Two channel video input |
| Reverse Function | Single way back (ruler setting function) |
| Reversing Delayed | 0-15s |
| Scale Function | Two scale ruler and automatic ruler switch |
| Power Supply | 12/24V，DC/<9W |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -25℃ to +70℃ |
