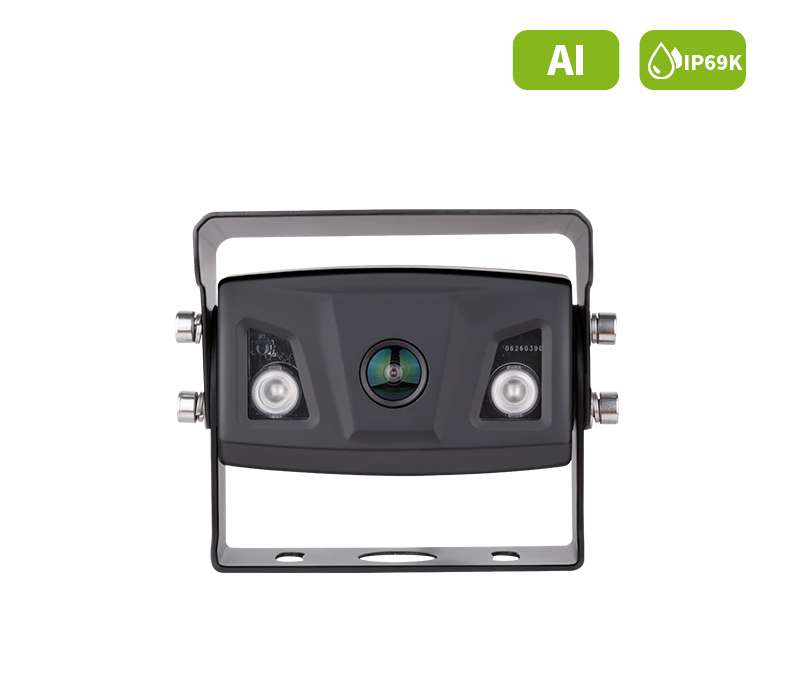

AI rear view camera with pedestrian detection and alarm
Product Features
The AI rearview camera is a specialized safety monitoring device designed for large vehicles. With the ability to perform pedestrian detection, provide immediate warnings based on real-time driving conditions, and enhance the safety of vehicle operations, it becomes an indispensable AI rearview camera for vehicles. Its high-definition 720P video output ensures clear images, while the IP69K waterproof rating guarantees stable operation in various harsh environments, ensuring safety accompanies you throughout every journey.
- High-definition 720P video output
- Alarm audio output, can be connected to a monitor or other speaker-equipped devices for playback
- Waterproof rating IP69K
Technical Specifications
| Image Device | 1/3 CMOS |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mm*3.670mm |
| Sync. System | Internal |
| Resolution | 700 TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 2PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.98mm |
| Lens Angle | 150° |
| Current Drain | 65±5mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
