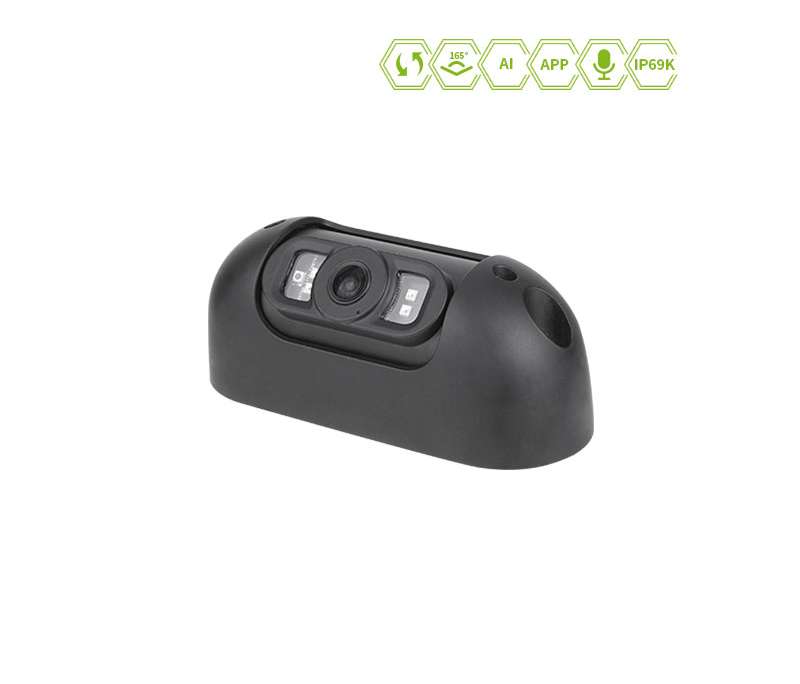

JY-814 R158/R159 advanced IP69K 1080P AI camera with pedestrian detection and audio-visual alert function

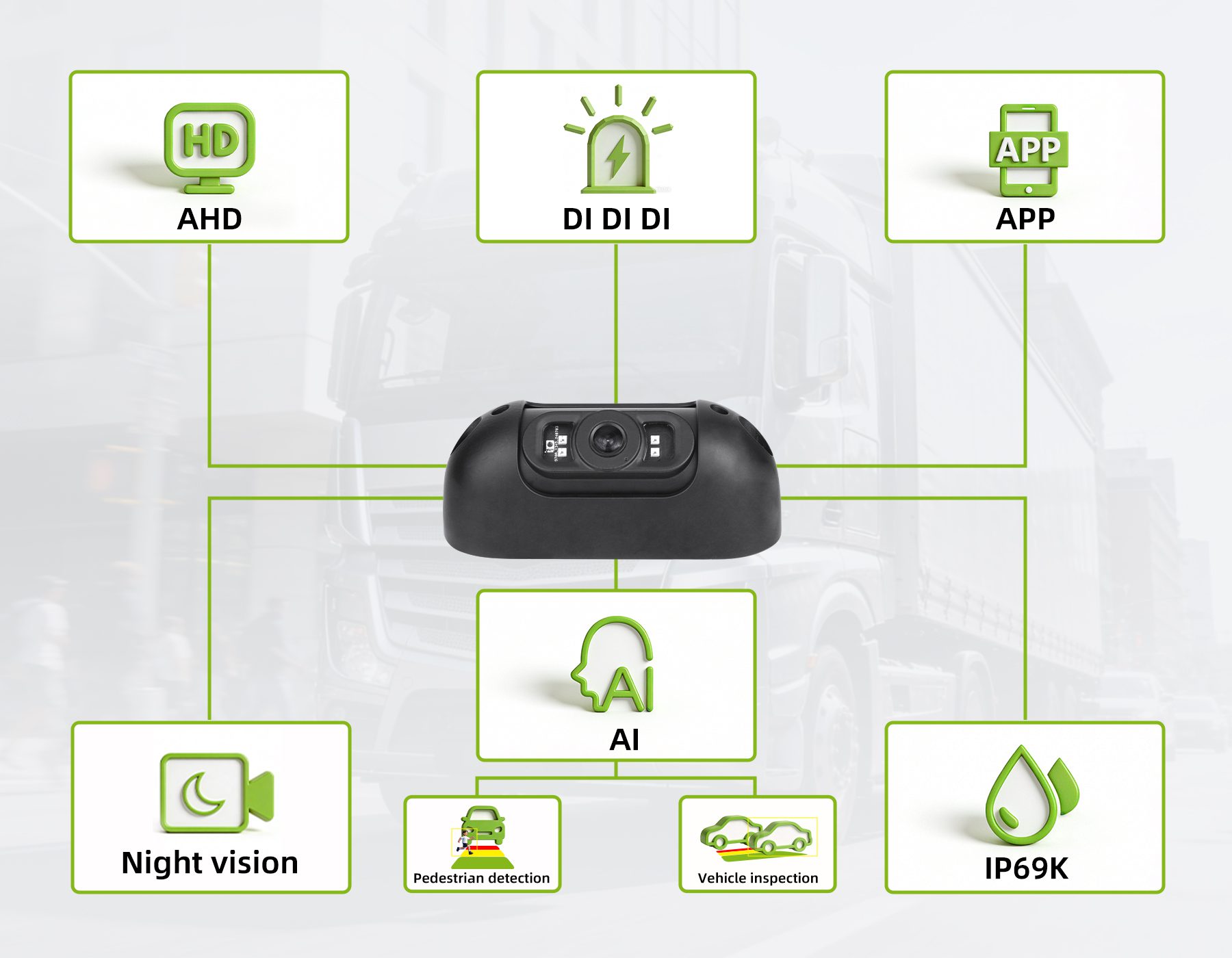

Product Features
The LUVIEW JY-814 AI camera is equipped with a cutting-edge algorithm that complies with R158/R159 standards and offers versatility across a broad spectrum of vehicles from M2 to N3 classes, including passenger, commercial, and sedan models. This camera stands out for its exceptional performance in detecting pedestrians and vehicles, offering both audio and visual alerts to inform drivers and bolster safety measures. Equipped with an external WiFi module, it enables seamless remote communication and the ability to receive firmware updates. Users can easily customize settings including format, mirroring, and detection parameters to suit varying driving conditions, ensuring a tailored and smart driving experience.

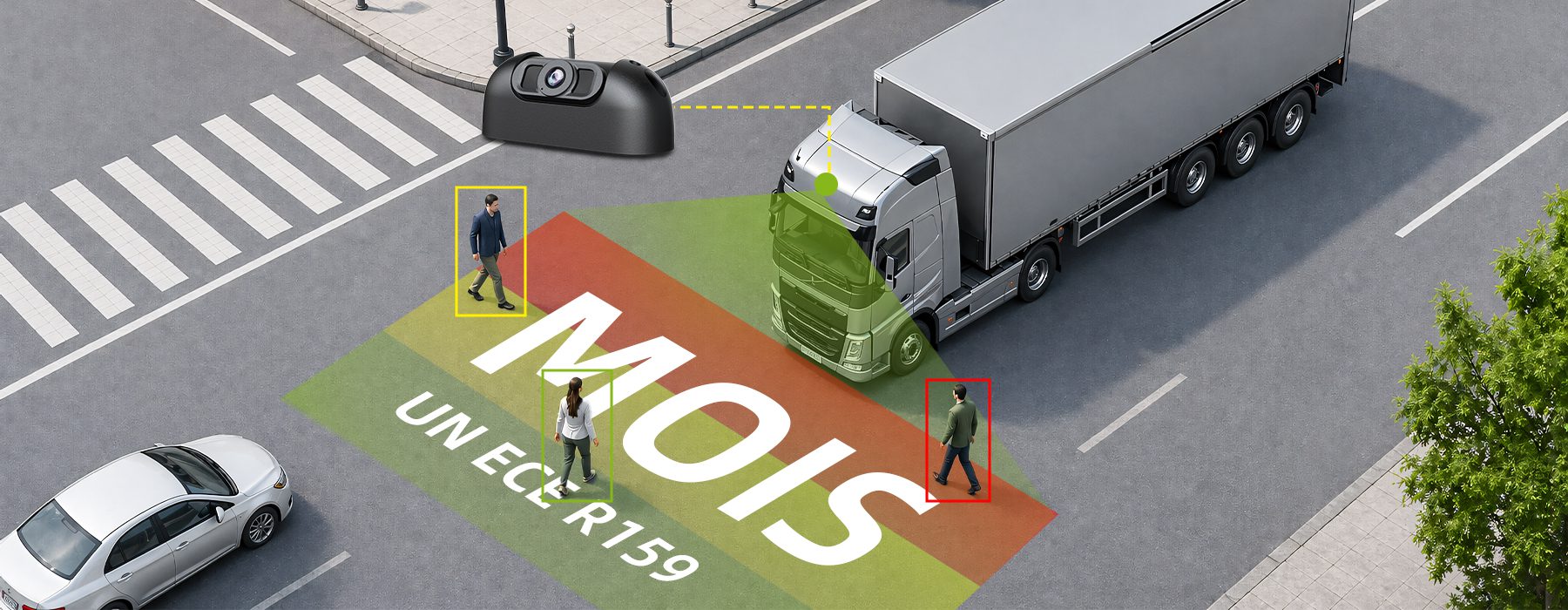

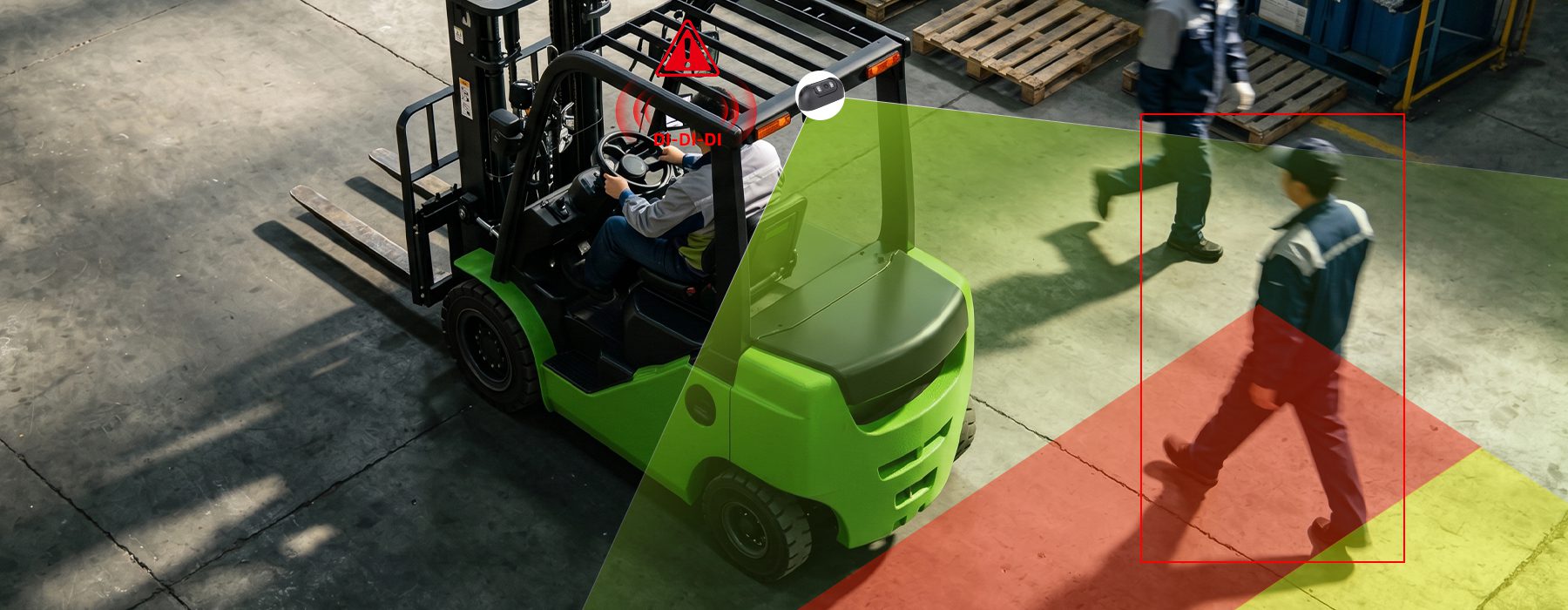

- Pedestrian and vehicle detection function, providing sound and light warning function output to remind the driver of pedestrians and vehicles in front and behind
- External WiFi communication and upgrade function
- The camera format, mirror, and flip can be set through WiFi communication
- The detection object, detection sensitivity, detection area of the ruler and other parameters can be freely adjusted
- The detection ruler can be freely adjusted according to needs
- Waterproof grade IP69K 720p, 1080p optional
- Connector type: 4pin aviation, BMW
- Lens angle: horizontal 145°, vertical 80°, diagonal 165°
- Adopt AI algorithm model
- Built-in menu setting regulations R158/R159 different application scenarios optional
Technical Specifications
| Image Device | 1/2.9 CMOS |
| TV System | NTSC/PAL |
| Frame Rate | 30/25 fps |
| Pixel Size | 2.8 μm x 2.8 μm |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Resolution | 1080P/720P |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Sync. System | Interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 43dB |
| White balance | AUTO |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Lens | 1.98mm |
| Lens Angle | D: 145° H: 80° V: 165° |
| Power Voltage | DC12V~24V |
| Power Consumption | 260±5 mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -25℃-75℃,RH 95% MAX |
