JY-870 brake light camera for 2016-2022 Peugeot Expert, TRAVELLER & 2015-2022 Citroen Jumpy, SpaceTourer, Dispatch & 2015-2022 Toyota Proace, Verso & 2019-2022 Opel Vivaro, Vauxhall Vivaro
Product Features

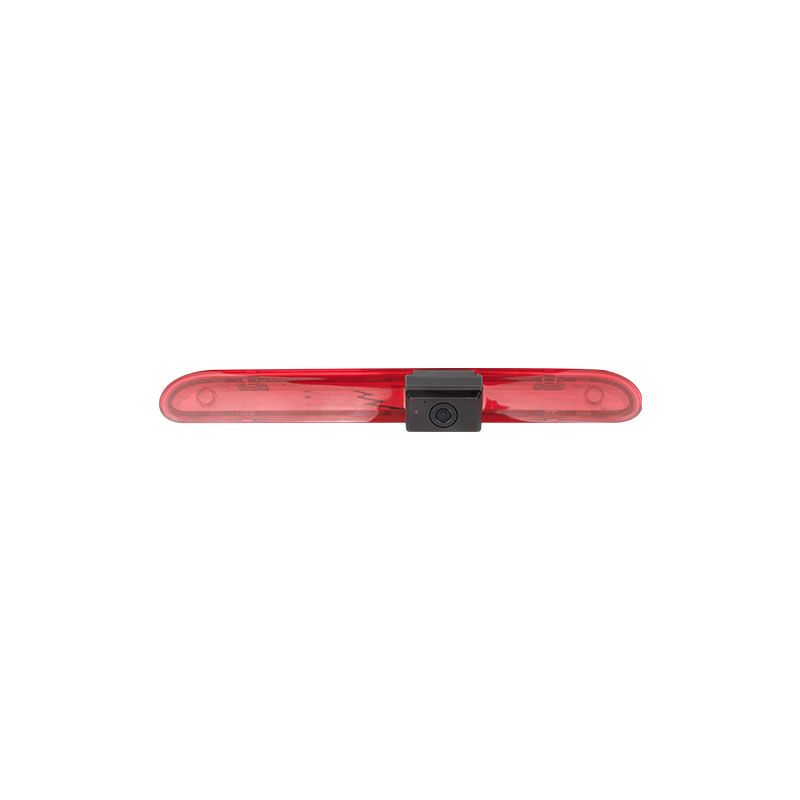

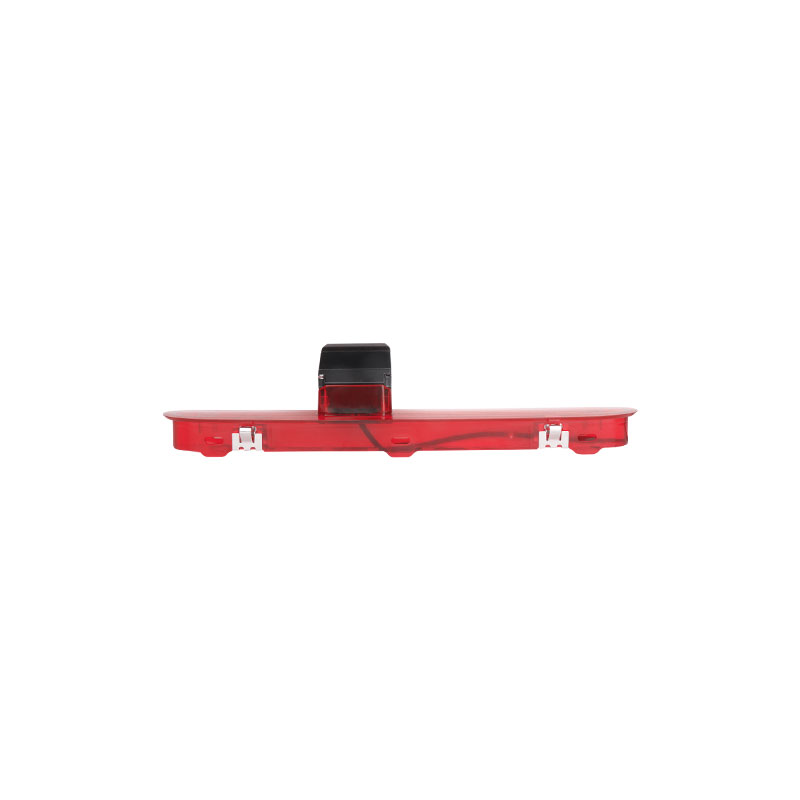

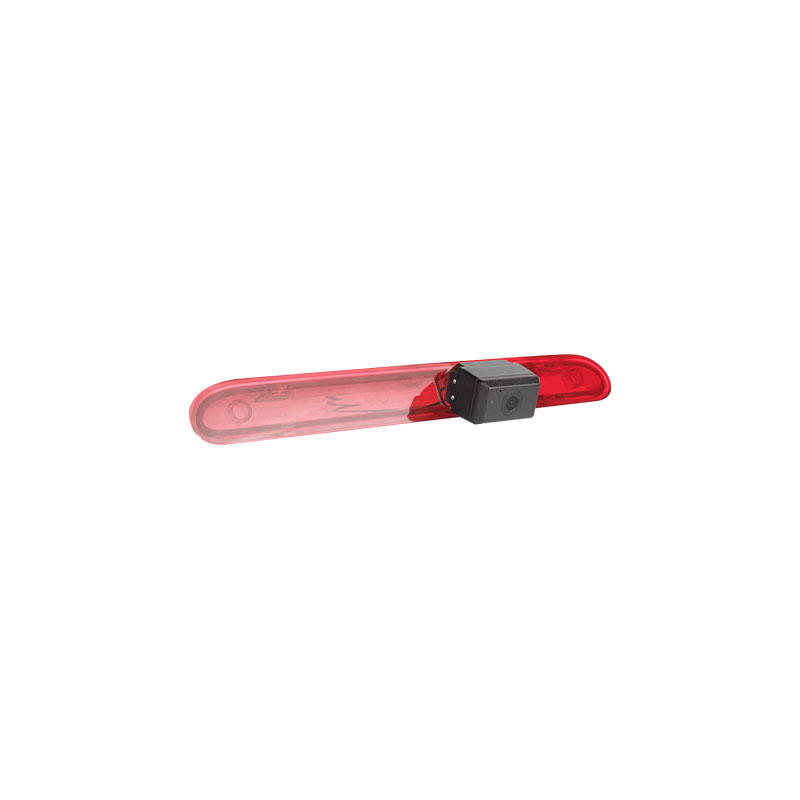

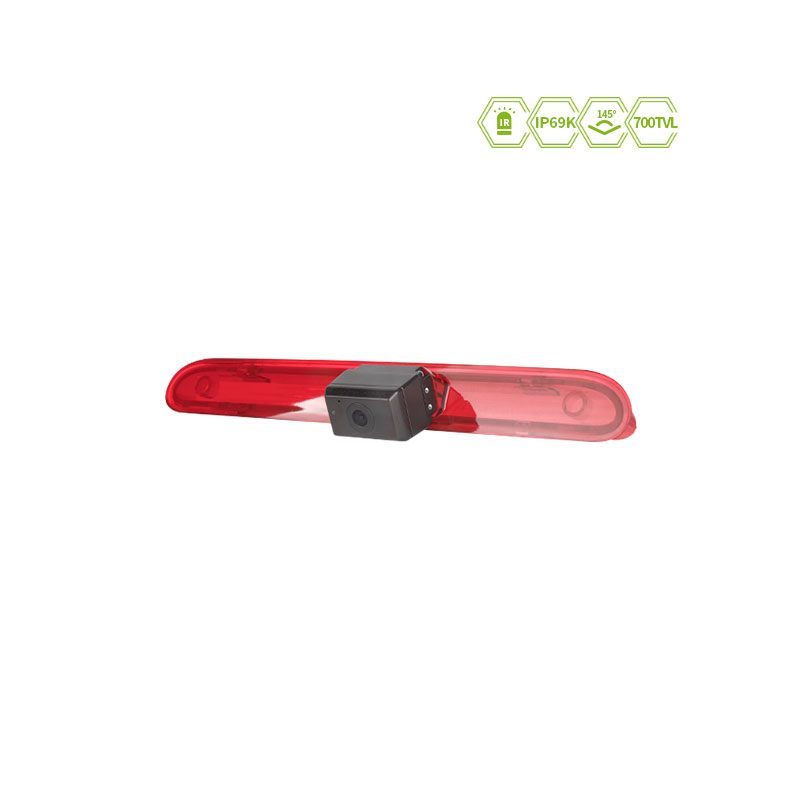

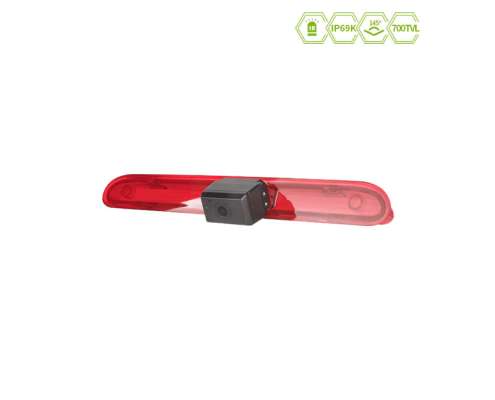

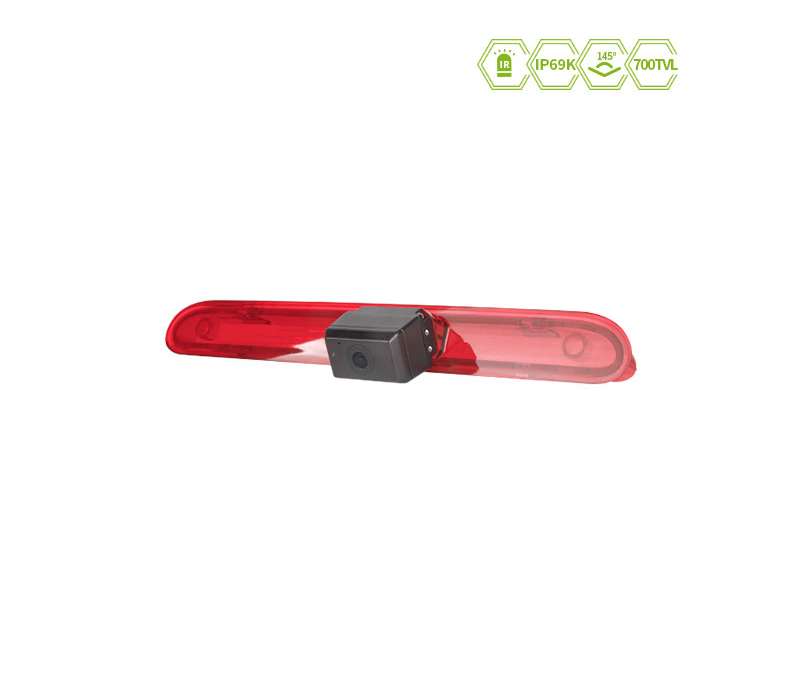

The Luview JY-870 brake light camera is designed to take the safety of your vehicle up a notch – it’s made with an ABS plastic bracket for superior performance and impact strength, along with waterproof and anti-collision metal material guaranteeing IP68 protection under tough environmental conditions. Suitable for 2016-2022 Peugeot Expert & Traveller models as well as 2015-2022 Citroen Jumpy, SpaceTourer & Dispatch vehicles in addition to 2019 Opel Vivaro/Vauxhall Vivaros and Toyota Proace or Verso cars from 2015 onwards; you can rest assured that this brake light security feature will keep performing optimally between temperatures ranging from -20°C through 70°C.
- support analog hd video 700TVL
- Waterproof grade IP69K
- With night vision function
- Support mirror switching and ruler control functions
Technical Specifications
| Image Device | 1/3 CMOS PC1058K |
| TV System | NTSC/PAL |
| Effective Pixels | 976(H)*592(V) |
| Sensing Area | 4.880mmⅹ 3.670mm |
| Sync. System | Internal |
| Resolution | 700TVL |
| Minimum Illumination | 0.1 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| IR LED Qty | 2PCS |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | interlace |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC12V |
| Lens | 1.7mm |
| Lens Angle | 145° |
| Current Drain | Daytime current 50mA ± 5, night vision current 210mA ± 5 |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
