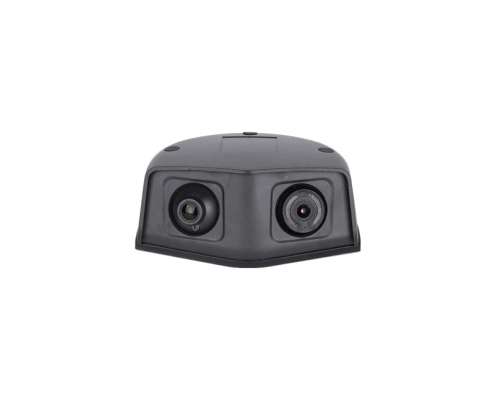

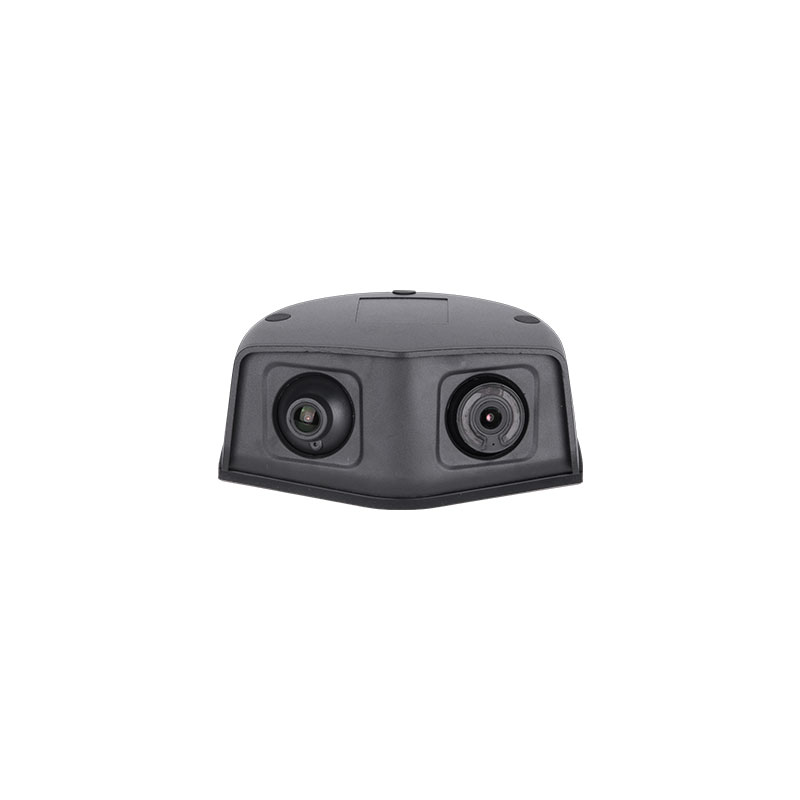

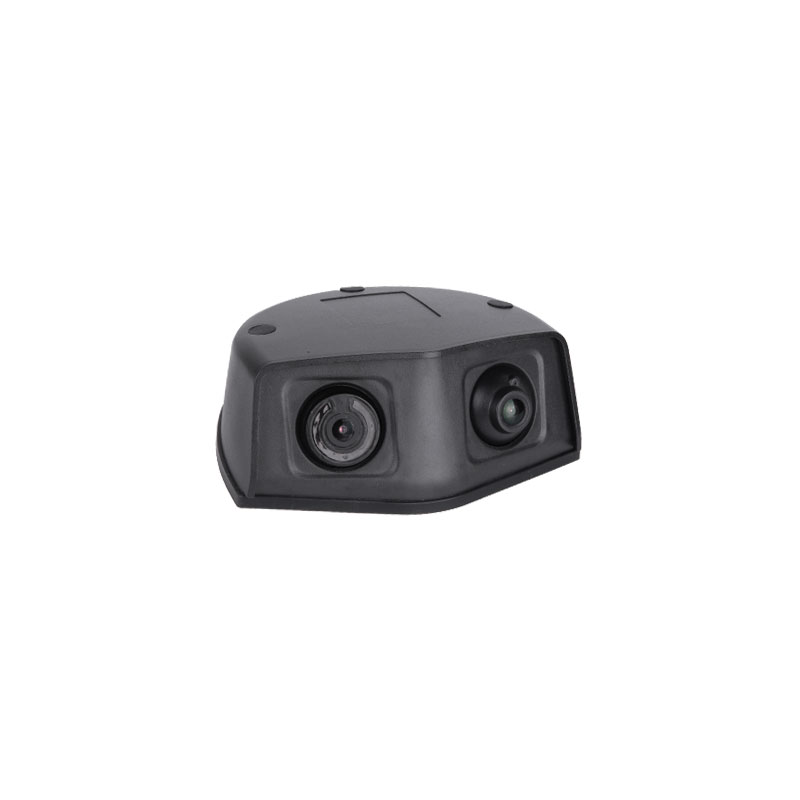

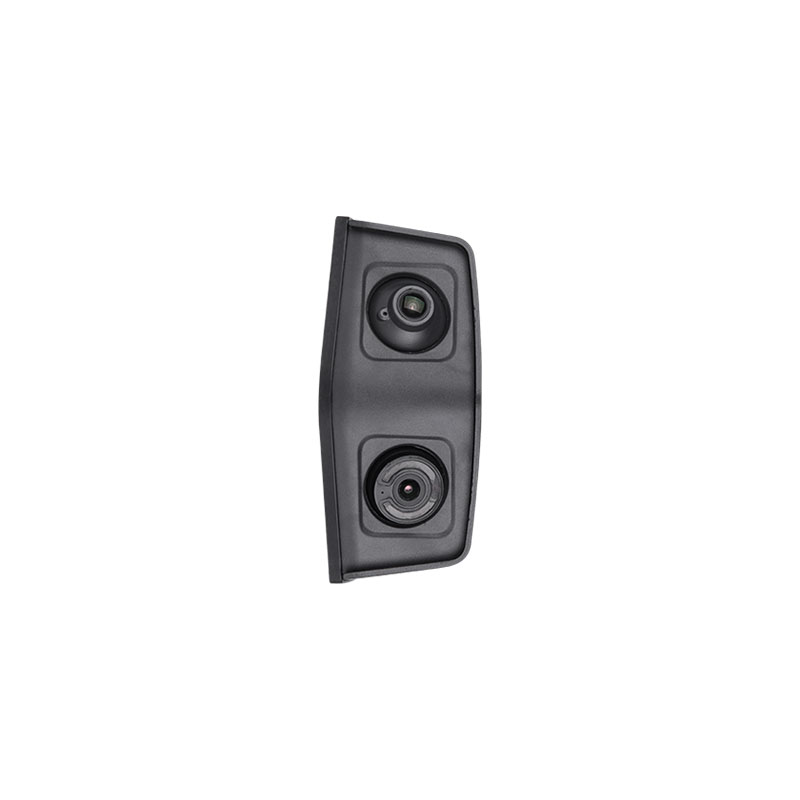

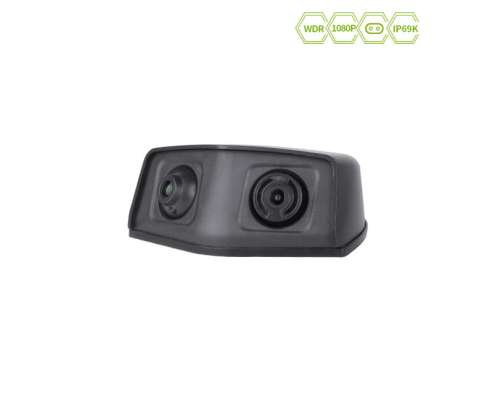

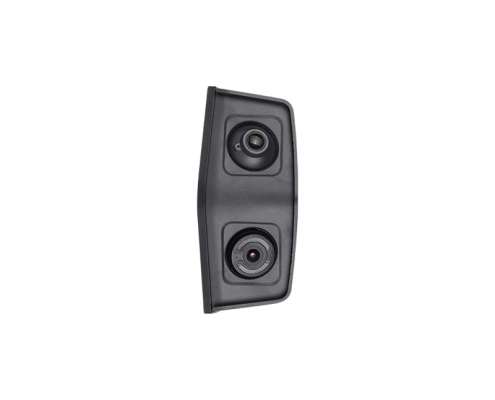

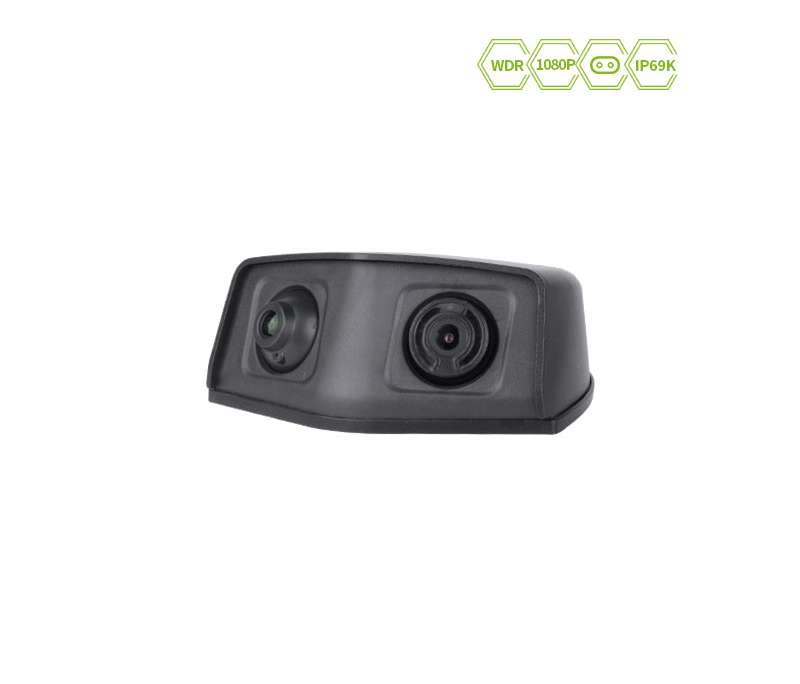

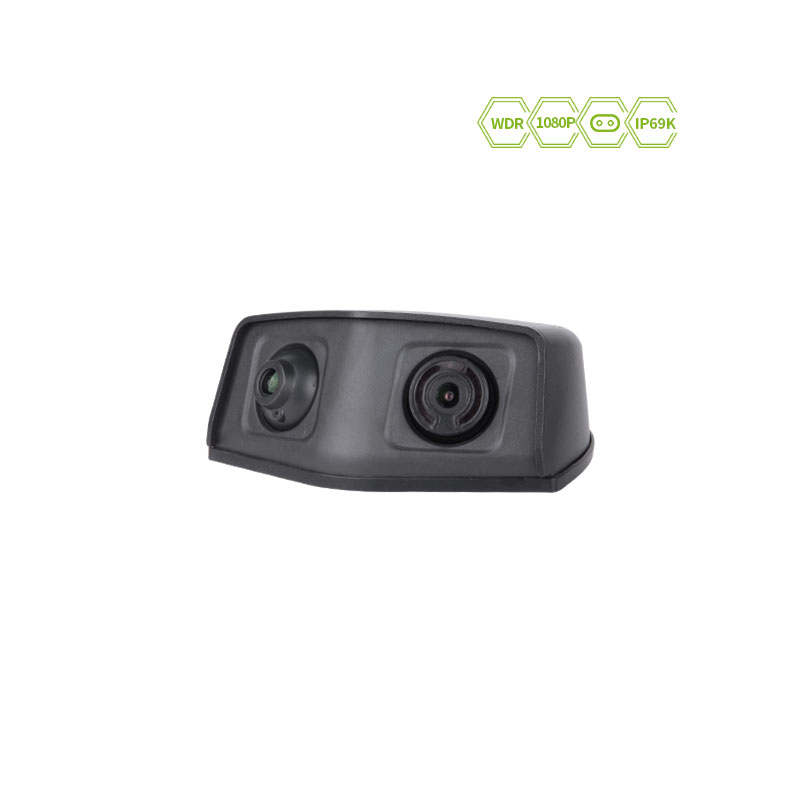

JY-862 1080P HD Dual Lens Side View Camera With High and Low Angle View
Luview JY-862 1080P HD dual lens side view camera is a dedicated side view camera designed to reduce blindspots and improve side view of heavy duty vehicles such as buses, trailers, trucks. It comes with a high and low angle view lens, so that driver can see more clearly with the monitor inside the vehicle, it can better replace traditional rearview mirrors that additional installed with a small wider angle mirror but with better visibility and reliablity.
Product Features
- Using 1/2.8 Sony 1080P starlight sensor
- The illumination reaches 0.001Lux, and the low-light visibility of night vision images is clearer and more delicate
- Wide dynamic (WDR) function, dynamic range up to 120dB. Clear and stable images can be achieved no matter day or night.
- IP69K waterproof level design
- Adaptive noise reduction processing, 2D-DNR, 3D-DNR
Technical Specifications
| Image Sensor | 1/2.8 Sony |
| TV System | NTSC / PAL (optional) |
| Effective Pixels | 1920(H)×1080(V) |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Sync. System | Internal |
| Resolution | 1080p / 2 mega-pixel |
| Minimum Illumination | 0.001 Lux (day), 0 Lux (with IR) |
| Microphone | Optional |
| Video Output | 1.0 Vp-p/75 Ohm |
| Scanning System | progressive scanning |
| AGC | AUTO |
| Signal to noise ratio | Better than 48dB |
| White balance | AUTO |
| Gamma Consumption | 0.45 |
| Electronic Shutter | AUTO |
| Backlight Compensation | AUTO |
| Power Supply | DC 12V |
| Lens Angle | High Lens: 4.3mm 40°(H) 80°(V) /Low Lens: 2.3mm 68°(H) 134°(V) |
| Current Drain | Single Lens: 100±5mA / Dual Lens: 200±10mA |
| Operating Temperature | -20℃-70℃,RH 95% MAX |
| Storage Temperature | -30℃-80℃,RH 95% MAX |
